HT23RTJ Pro Valid inspection, *Guarantee! 22.5 m W

-- English --
- Type of fuel: Diesel
- Operating hours: 2170
- Drive: Wheel
- Empty weight: 13320 kg
- Lifting capacity: 450 kg
- Working height: 2.250 cm
- Serial number: 2045265
- Max. horizontal reach: 1830 m
- Transport dimensions (LxWxH): 9.85x2.47x2.7
Please contact us for more information.

-- Deutsch --
- Kraftstofftyp: Diesel
- Betriebsstunden: 2170
- Antrieb: Rad
- Leergewicht: 13320 kg
- Hubkapazität: 450 kg
- Arbeitshöhe: 2.250 cm
- Seriennummer: 2045265
- Max. horizontale Reichweite: 1830 m
- Transportabmessungen (L x B x H): 9.85x2.47x2.7
Setzen Sie sich fur nahere Auskunfte mit uns in Verbindung.

-- Nederlands --
- Brandstofsoort: Diesel
- Bedrijfsuren: 2170
- Aandrijving: Wiel
- Ledig gewicht: 13320 kg
- Hefcapaciteit: 450 kg
- Werkhoogte: 2.250 cm
- Serienummer: 2045265
- Max. horizontale reikwijdte: 1830 m
- Afmetingen (LxBxH) (m): 9.85x2.47x2.7
Self-Propelled Boomlift.
HAULOTTE HT23RTJ PRO YEAR 2018

This machine has a valid inspection and can be sold with warranty. Inform about our conditions!

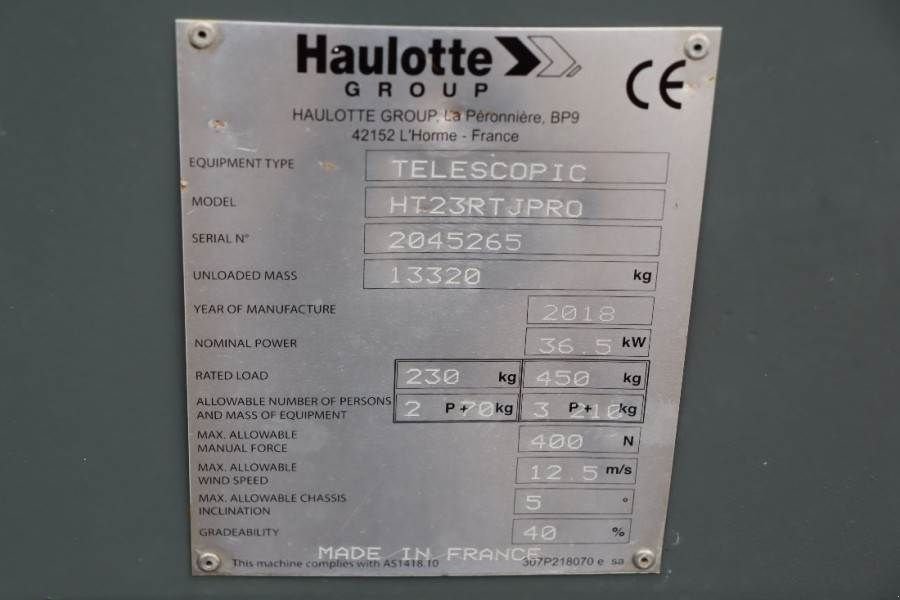

Manufacturer: Haulotte
Typ: HT23RTJ PRO
Mnuf. year: 2018
Serial number: 2045265

Fuel: Diesel
Engine: Kubota / TIER 4 interim
Engine Output: 36.5 kW - 48.9 hp

Working height: 22.5 m
Horizontal outreach: 18.3 m
Below ground reach: 4 m
Lift capacity: 450 kg
Vertical jib rotation: 133° (+68/-65)
Platform rotation: 180° (+90/-90)
Boom rotation angle: 90° (+75/-15)
Turntable rotatio: 360° continuous
Drive speed: 0.5 - 6.5 km/h
Gradeability:40 %

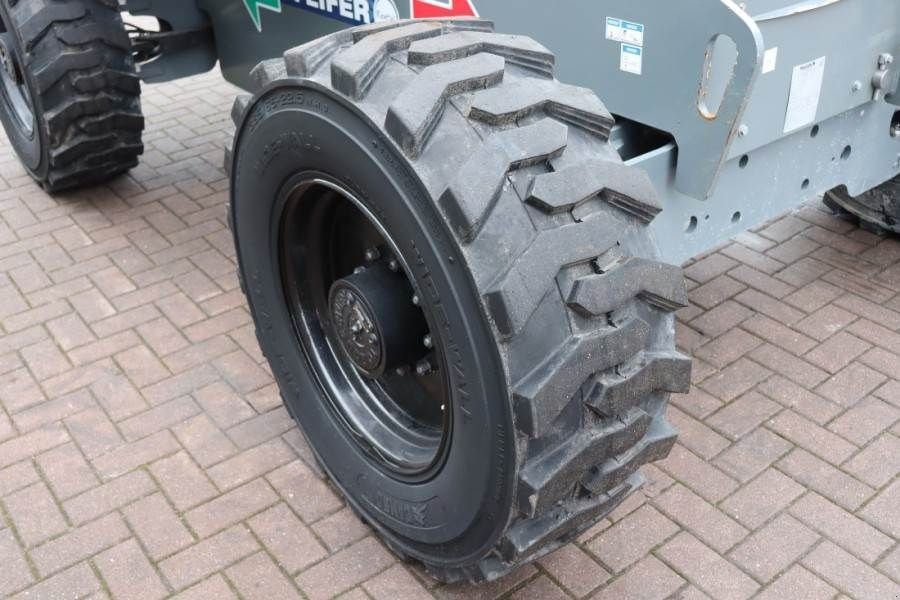

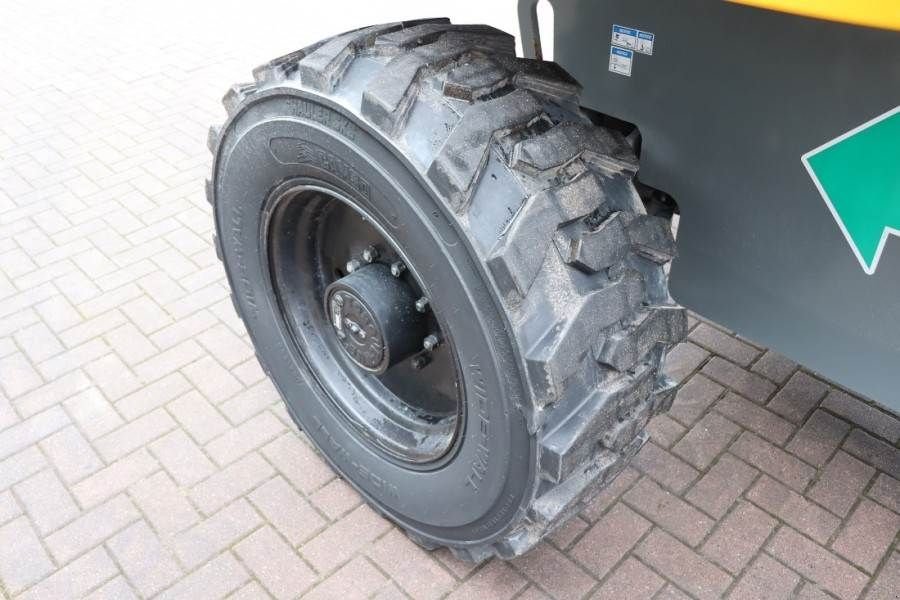

* 4 wheel drive 4 (PRO) wheel steer
* Automatic differential wheel lock increase rough terrain capacity
* Front oscillating axle increases stability on uneven ground

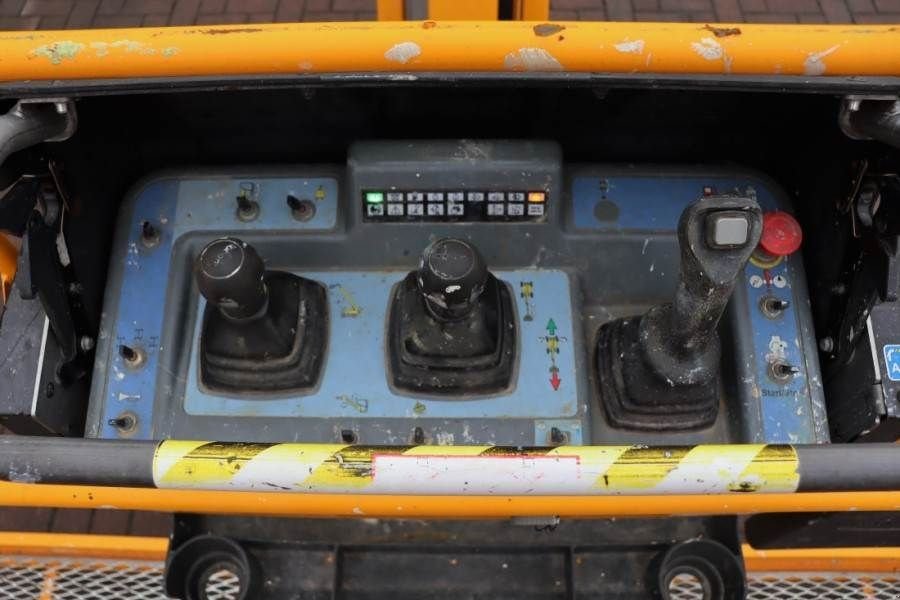

* Proportional controls enhance comfort and safety
* 4 simultaneous movements for maximum productivity
* 450 kg load capacity unrestricted working envelope
* Large modular basket 2.44 x 0.91 m, Drop entry gate
* Upper control box protection cover and tool tray
* Prepared for power to platform 110 / 230 V
* Basket limitation +/- 10°

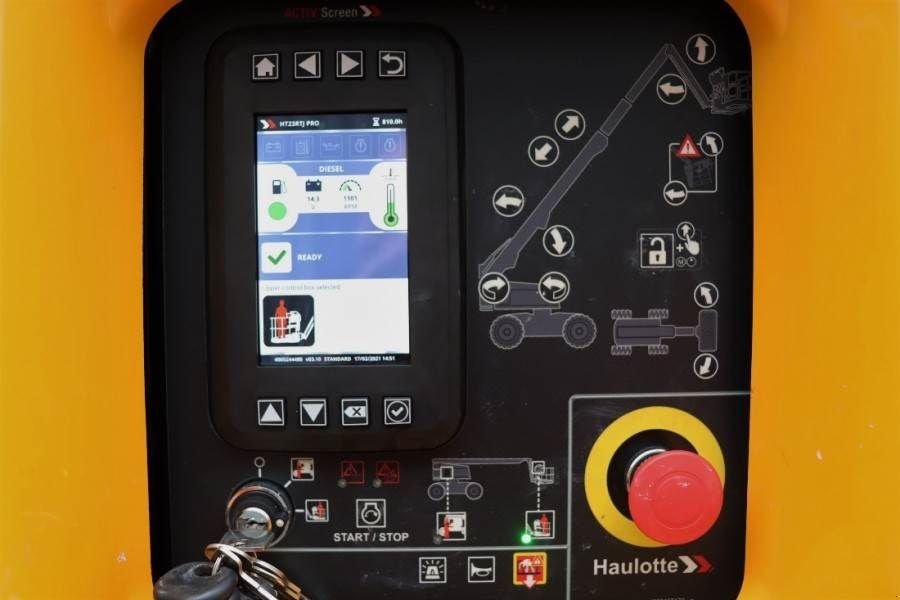

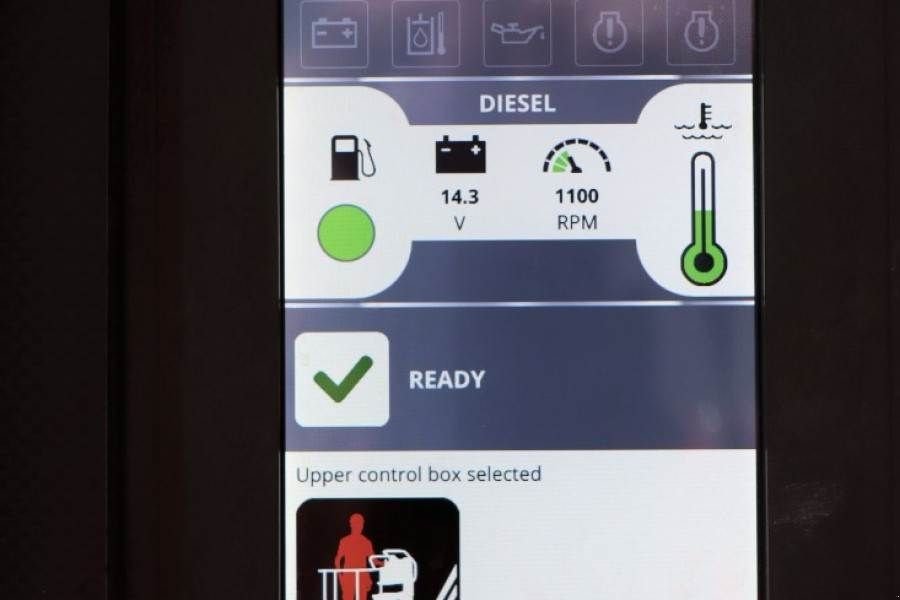

* ACTIV''Screen colored monitor screen and diagnostic system
* Swing out engine tray for ease of maintenance
* Hour meter
* Low fuel level indicator (upper control box)
* Engine pre-heater with light indicator
* Sound and light alarm for tilt and load
* Maximum wind speed 45 km/h / 28 mph
* 12 V battery
* Electric pump system and emergency descent
* Rotating beacon
* Driving alarm
* Haulotte Activ''Shield™ Bar PRO model

Transport size: LxWx:
7.80 m x 2.47 m x 3.30 m

CE (Declaration of Conformity)

More detailed pictures / product movie on our website.

pfeifermachinery.com

Above specifications are subject to change without prior notice and subject to errors.
