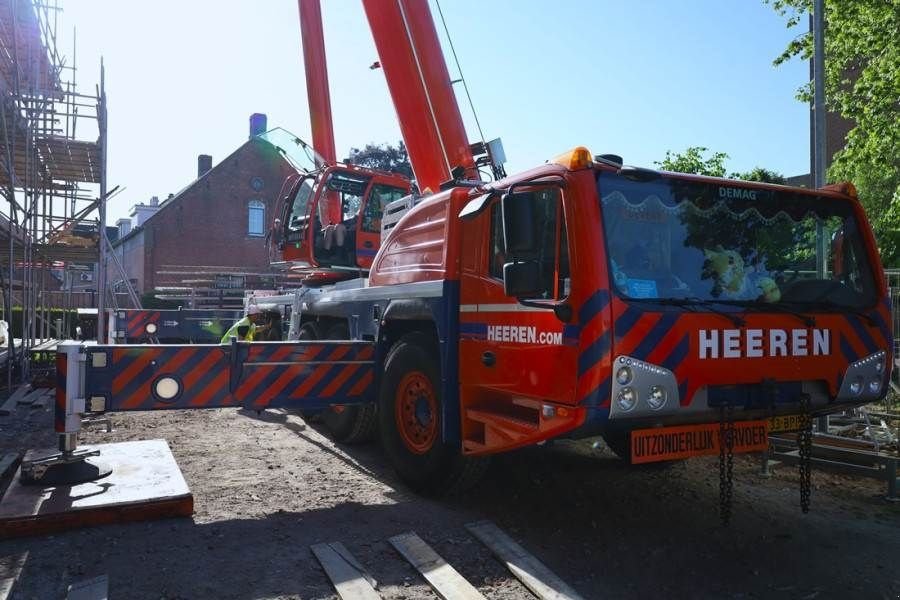

AC220-5 Dutch Registration, 10x6x10, 220t Ca

-- English --
- Type: All terrain crane
- Operating hours: 5422
- Field of application: Construction
- Drive: Wheel
- Empty weight: 48000 kg
- Lifting capacity: 220000 kg
- Serial number: 82609
- Front tyres / undercarriage remaining: 90
- Rear tyres remaining: 90
- Tyre brand: -
- Carrier engine: -
- Upper engine: -
- Counterweight: 70200
- Transport dimensions (LxWxH): 15.3x3x4
Please contact us for more information.

-- Deutsch --
- Typ: All-Terrain-Kran
- Betriebsstunden: 5422
- Verwendungszweck: Bauwesen
- Antrieb: Rad
- Leergewicht: 48000 kg
- Hubkapazität: 220000 kg
- Seriennummer: 82609
- Zustand der Bereifung vorne: 90
- Zustand der Bereifung hinten: 90
- Transportabmessungen (L x B x H): 15.3x3x4
Setzen Sie sich fur nahere Auskunfte mit uns in Verbindung.

-- Nederlands --
- Type: Weg-terreinkraan
- Bedrijfsuren: 5422
- Toepassingsgebied: Bouw
- Aandrijving: Wiel
- Ledig gewicht: 48000 kg
- Hefcapaciteit: 220000 kg
- Serienummer: 82609
- Resterend profiel voorbanden: 90
- Resterend profiel achterbanden: 90
- Contragewicht: 70200
- Afmetingen (LxBxH) (m): 15.3x3x4
This Demag AC220-5 can be sold with warranty. Inform about our conditions!

The Sterk Contra weight trailer is included, along with a mover equipped with a remote control (See Pictures)

Manufacturer: Demag
Typ: AC220-5
Manufacturer Year: 2020
Fuel: Diesel

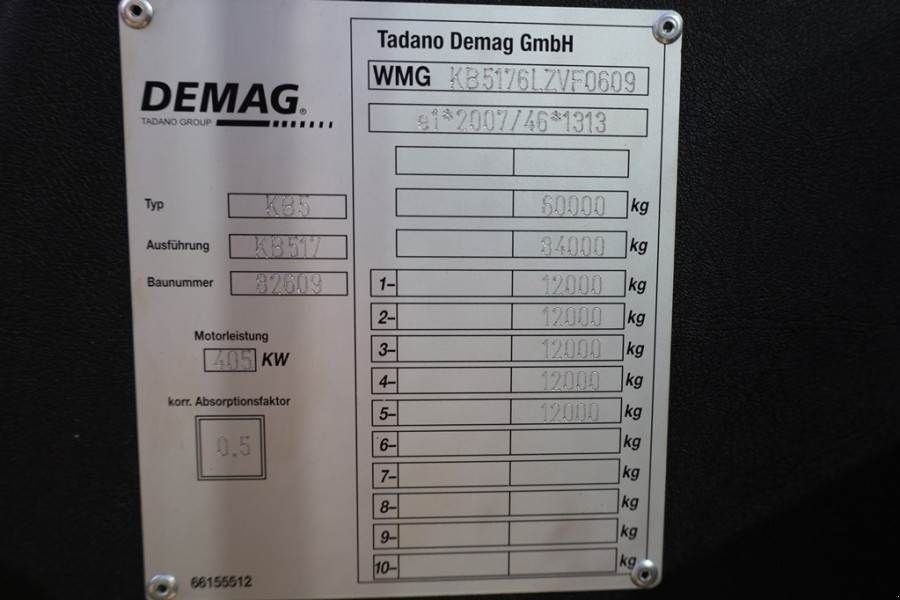

Chassis number: WMGKB5176LZVF0609
Serial number: 82609

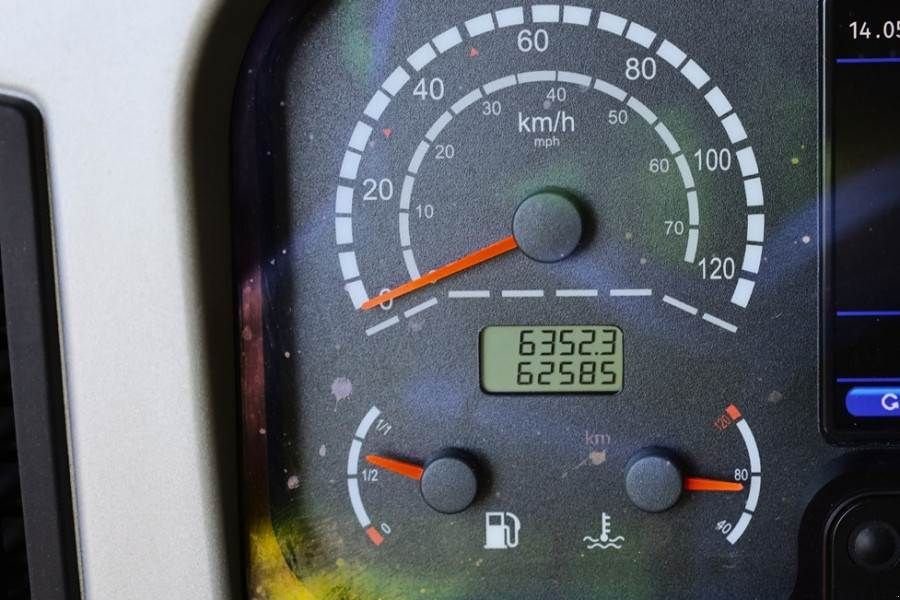

KM: 62.585

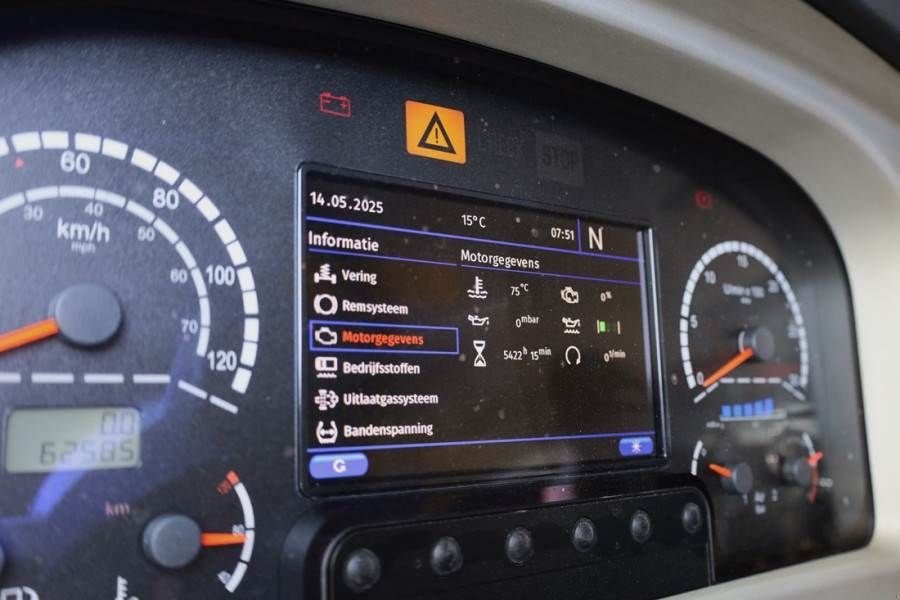

Working Hours: 5.422 h

Max. lifting capacity: 220 tons
Main boom: 12.8 m - 78 m

Engine:
Scania DC13, Euromot 4 / Tier 4F compliant
Power: 368 kW (500 HP) @ 2100 rpm
Torque: 2373 Nm @ 1300 rpm

Drive Configuration:
10x6x10

Transmission:
ZF AS-Tronic 12-speed automated gearbox with 2 reverse gears
Hydraulic retarder & off-road gear

Dimensions
Overall Length (with boom): Approx. 15.33 m
Overall Width: 3.00 m
Overall Height (transport position): 4.00 m

Wheelbase: Approx. 3 x 1.65 m + 2.10 m
Turning Radius (inner): Approx. 8.4 m
Max. Outrigger Base: 8.4 m x 8.9 m
Outrigger Positions: 2.75 m / 5.54 m / 7.0 m / 8.4 m

Stability & Smart Control
Outriggers: 4-point H-type fully hydraulic outriggers
Base widths: 2.75 m, 5.54 m, 7.0 m, and 8.4 m

IC-1 Plus Control System:
Enables asymmetrical outrigger positioning
Real-time load chart adaptation
Outrigger Monitoring: Horizontal beam stroke monitored with warning system.

Jib Extensions:
21 m folding swing-away jib with manual offset angles (20°/40°)

Lubrication:
Central lubrication system for both carrier and superstructure (e.g., luffing cylinders, slewing ring)

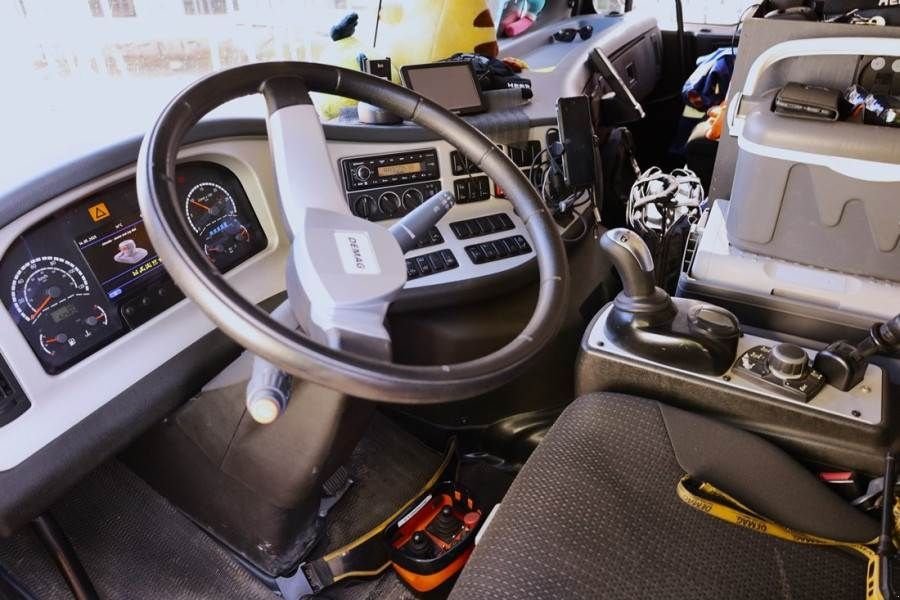

Infotainment:
Radios in both cabs with CD, USB, Aux-In and Bluetooth

Heating & Cooling:
Carrier Cab Heating: 12 kW warm water
Superstructure Heating: 5 kW independent
Carrier Air Conditioning: 7 kW
Superstructure A/C: 5 kW

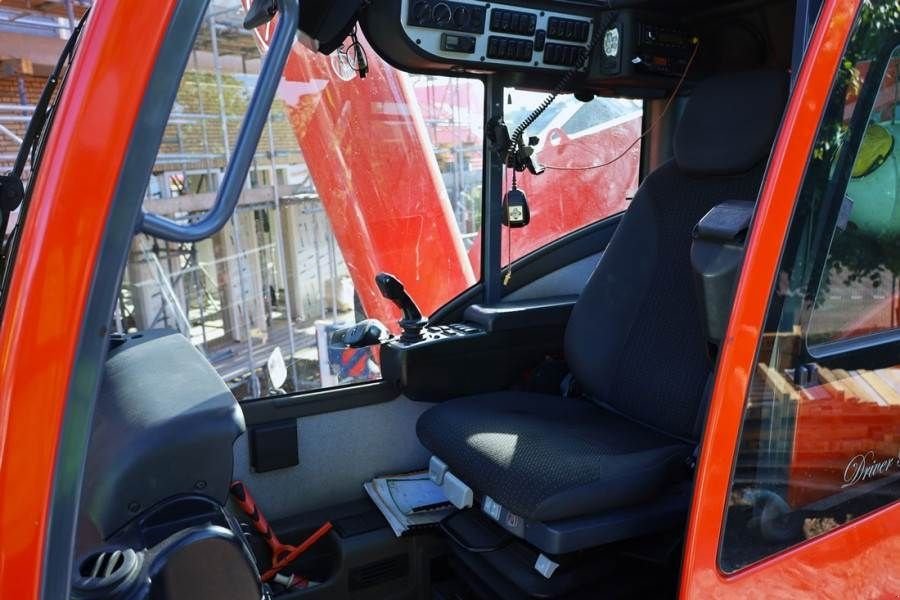

Superstructure Cab
Infinitely tiltable up to 16°, sliding windows, front window folds out, extendable pedestals.

Counterweight System
Standard Counterweight: 51.6 tonnes
Maximum Counterweight: 70.2 tonnes
Automatic Rigging System: For quick and safe counterweight setup.
Fall Protection: Counterweight fall arrest system included (compliant with NL regulations).

Dutch vehicle registration
Crane Logbook
All necessary documents and papers.
CE (Declaration of Conformity).

More detailed pictures / product movie on our website.

pfeifermachinery.com

Above specifications are subject to change without prior notice and subject to errors.
