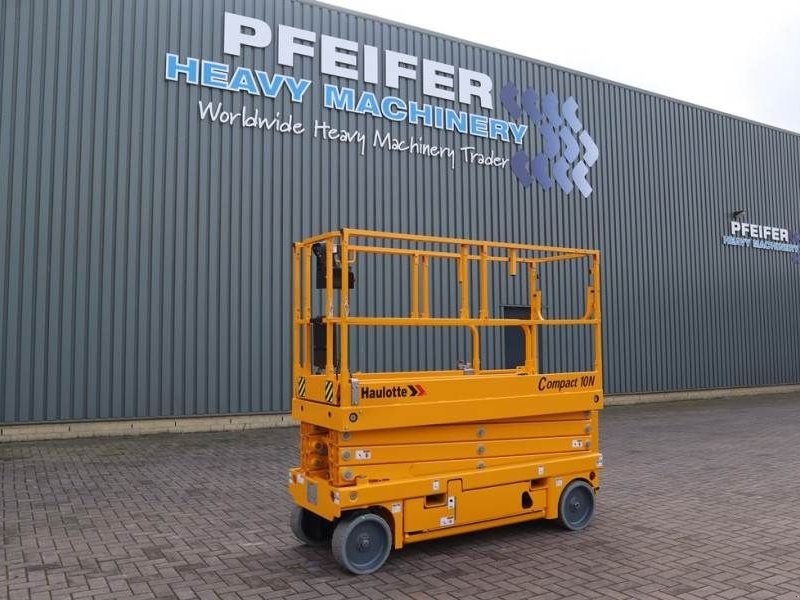

Compact 10N Valid Inspection, *Guarantee! 10m Work

-- English --
- Operating hours: 87
- Drive: Wheel
- Empty weight: 2160 kg
- Lifting capacity: 230 kg
- Working height: 1.000 cm
- Serial number: 2106619
- Transport dimensions (LxWxH): 2.49x0.81x2.18
Please contact us for more information.

-- Deutsch --
- Betriebsstunden: 87
- Antrieb: Rad
- Leergewicht: 2160 kg
- Hubkapazität: 230 kg
- Arbeitshöhe: 1.000 cm
- Seriennummer: 2106619
- Transportabmessungen (L x B x H): 2.49x0.81x2.18
Setzen Sie sich fur nahere Auskunfte mit uns in Verbindung.

-- Nederlands --
- Bedrijfsuren: 87
- Aandrijving: Wiel
- Ledig gewicht: 2160 kg
- Hefcapaciteit: 230 kg
- Werkhoogte: 1.000 cm
- Serienummer: 2106619
- Afmetingen (LxBxH) (m): 2.49x0.81x2.18
This machine has a valid inspection and can be sold with warranty. Inform about our conditions!

This Haulotte Compact 10N is also available for rent!

Manufacturer: Haulotte.
Typ: Compact 10N
Building year: 2022
Fuel: Electric
Serial number: 2106619

Working height: 10 m
Platform length - outside: 2.31 m
Platform length - extended: 3.23 m
Length - extension: 0.92 m
Platform width - outside: 0.81 m

Storage height : 1.32 m
Height - stowed: 2.18 m
Overall width: 0.81 m
Length: 2.49 m

Wheelbase: 1.86 m
Ground clearance - Center: 13 cm
Ground clearance - Deployed potholes: 2.5 cm

Drive speed: 1 - 3.2 km/h
Maximum drive height: 8 m
Lift / lower speed: 36 s / 42 s
Gradeability: 23 %
Tilt: 2 °

Turning radius - outside: 2.38 m
Non-marking tyres: 15x5

Platform size - extended: 3.23 x 0.81 m
Lift capacity - inside: 230 kg (2 pers.)
Lift capacity on the extension: 120 kg

Transport size: 2.31 x 0.81 x 1.32 m

CE (Declaration of Conformity).

More detailed pictures / product movie on our website.

pfeifermachinery.com

Above specifications are subject to change without prior notice and subject to errors.
